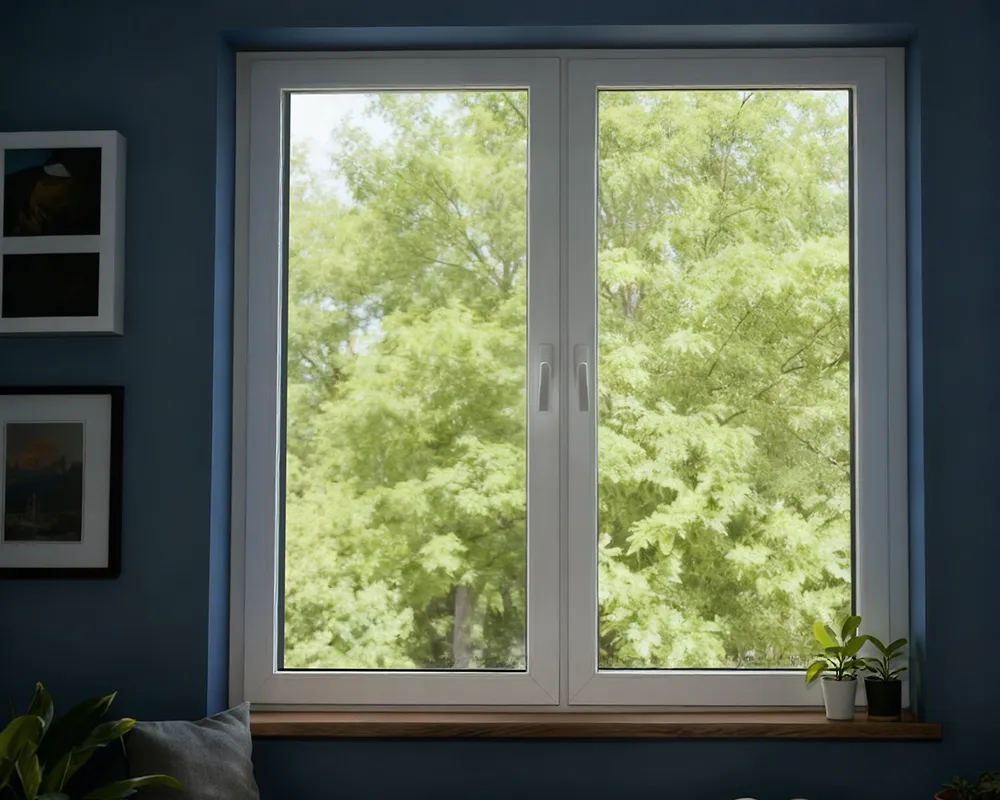

AEGIS Casement Solution

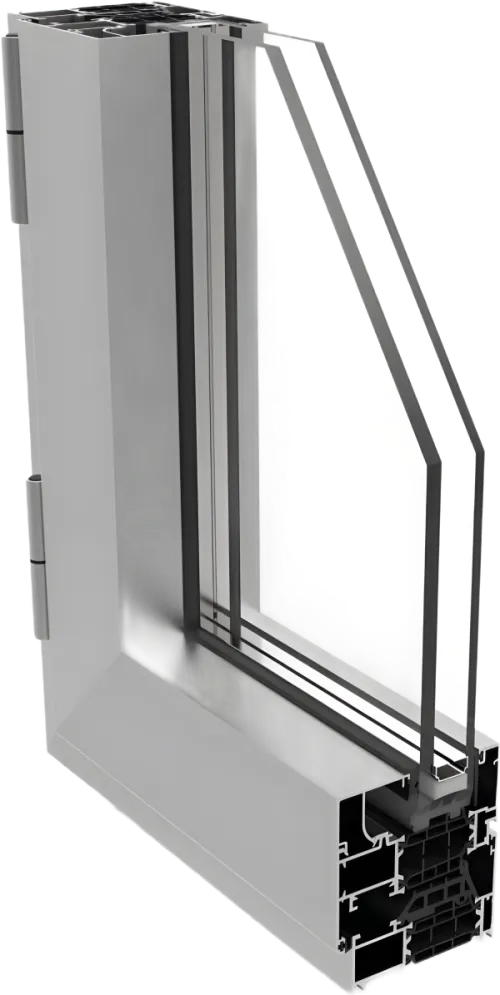

AEGIS PLUS Series

The AE HI Series is defined by its pure minimalist design, featuring concealed hinges that create an exceptionally clean aesthetic.

1. Air permeability :Class 4
2. Water tightness :Class E 1500
3. Wind resistance :Class C5
4. Acoustic insulation :49 dB
5. Burglary resistance :Class 2
6. Thermal insulation :0.77 W/m2K

Key Features and Certifications:

• Superior Performance: This series is particularly suitable for Class A+ buildings, meeting the highest standards for energy efficiency and structural integrity.
• Certified Quality: The system has achieved the prestigious FinestraQualità certification by the CasaClima (Klimahaus) Agency, validating its superior quality and performance metrics.
• This series is positioned for high-end durability, focusing on superior wind load resistance and strong water tightness. It is ideally suited for complex environments such as coastal areas and ultra-high-rise buildings.

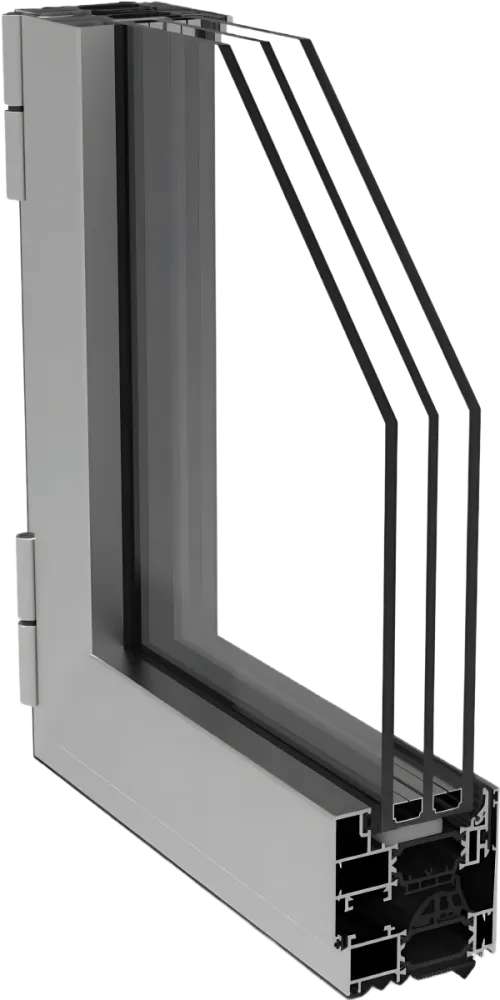

AEGIS HI Series

The AE HI Series is defined by its pure minimalist design, featuring concealed hinges that create an exceptionally clean aesthetic.

1. Air permeability : Class 4
2. Water tightness : Class 8A
3. Wind resistance : Class C3
4. Thermal insulation : 0.80 W/m2K

Performance Advantage:

• Designer Focused: Its streamlined appearance and high-end finish make it extremely attractive to designers and architects seeking an unobtrusive look.
• Versatile Application: The series is ideally suited for both the demanding residential market and sophisticated commercial projects, offering flexibility without compromising style.

Aesthetic Advantage:

The hidden hardware achieves a seamless integration, maximizing glass area and light while ensuring the entire elevation remains sleek and uncluttered.

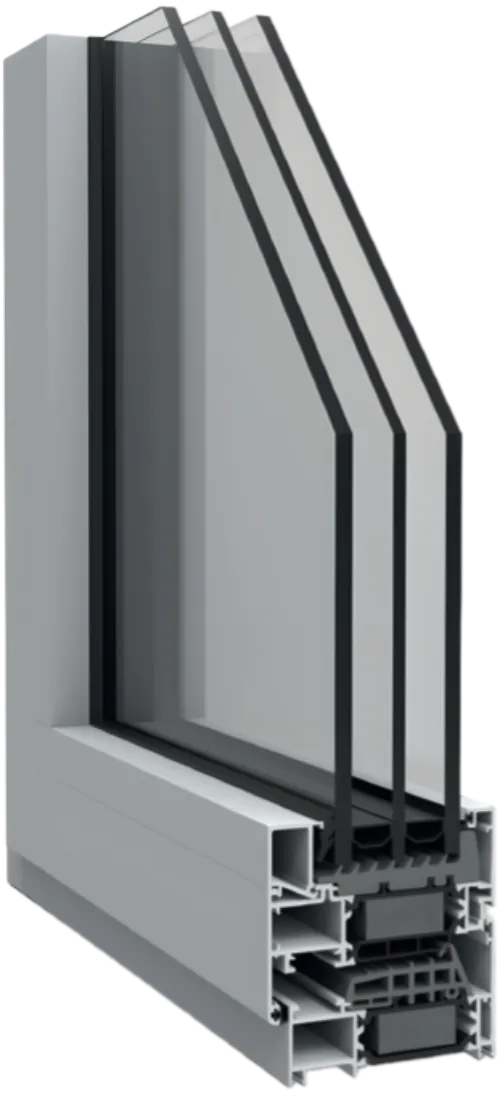

AEGIS UP Series

The AEGIS UP Series is a new thermal break system engineered for elite energy efficiency, guaranteeing excellent thermo-acoustic performance and superior sealing against all atmospheric agents.

1. Air permeability : Class 4
2. Water tightness : Class E 1500
3. Wind resistance : Class C5
4. Burglary resistance : Class 2
5. Thermal insulation : 0.68 W/m2K

Ultimate Thermal Performance:

• Slim Profile: Achieved with a narrow 82mm frame section that maximizes light while maintaining integrity.
• Passive House Standard: Insulation performance meets Passive House standards, thanks to a sophisticated thermal break assembly that includes:
• A 48mm thermal break made of low-density polyamide.
• Integrated PIR SFG (Saturated Fiber Glass) insulation.

AE SLIMUP Series

The AE SLIMUP Series is a new aluminum window system featuring European-chamber thermal insulation combined with a minimalist aesthetic and essential lines.

1. Air permeability : Class 4
2. Water tightness : Class E1200
3. Wind resistance : Class C4
4. Thermal insulation : 0.79 W/m2K

Design & Aesthetic Benefits:

• Maximum Glazing : The design significantly reduces the architectural footprint, ensuring more natural light is brought into the building interiors.
• Minimalist Look : Its basic and clean lines make it a top choice for contemporary designs where the focus is on the view, not the frame.
