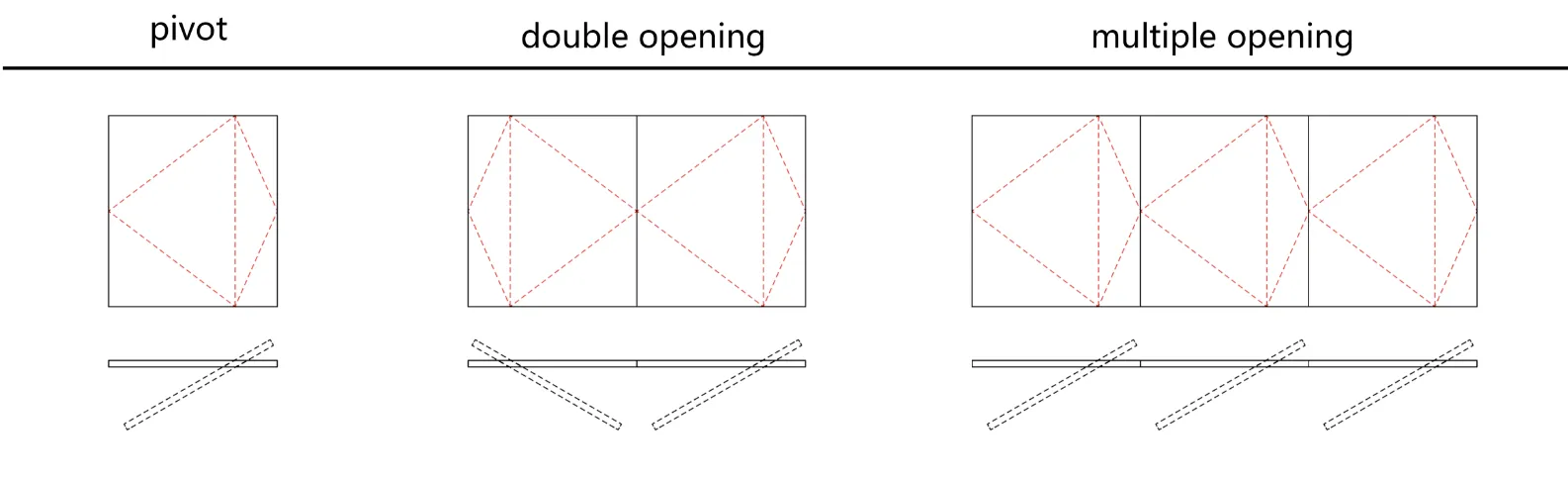

This system is engineered around a unique pivot axis, which can be strategically offset or perfectly centered to create distinct architectural statements and customized opening dynamics.
Designed to accommodate large-format glass, the UltraSlim series maximizes your field of vision, blurring the lines between spaces. This unique rotational opening provides vast, uninterrupted views and delivers a truly sophisticated, high-end experience.
| Maximum Height | 6000mm |
| Maximum Width | 4000mm |
| Maximum Size of Panel | 9m2 |
| Maximum Weight | 800kg |
| Specification of Thermal Break Bar | 53mm |
| Size of Glass Groove | 38mm |
| Thermal Insulation | < Uw 2.2 |
| Waterproof Performance | E 1500 |
| Wind Pressure Resistance | Class C4 |
| Air Tightness | Class 4 |


The APEX Pivot Door offers an unparalleled combination of convenience and advanced protection, making it ideal for both Corporate Access Control and High-End Residential Installations.

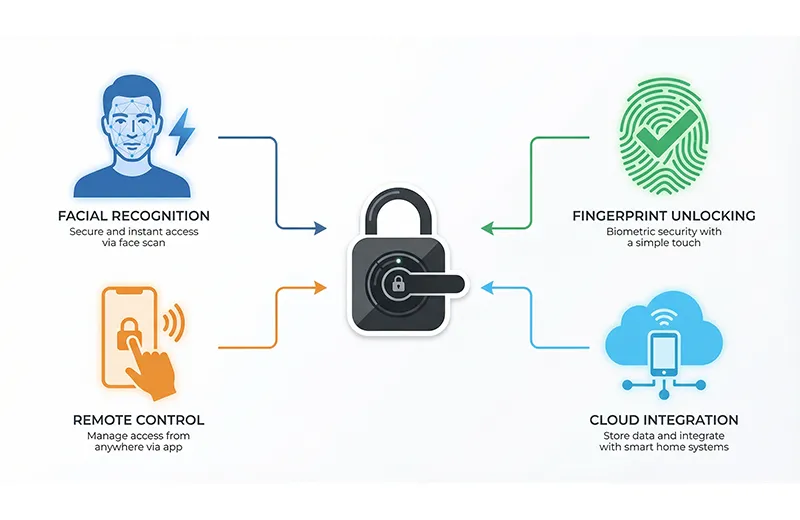

• Facial Recognition: Fast, contactless entry.
• Fingerprint Unlocking: Reliable and trusted biometric security.
• Remote Control: Effortless control at your fingertips.
• Cloud Integration: Full control via a mobile app, providing remote management and real-time status updates.

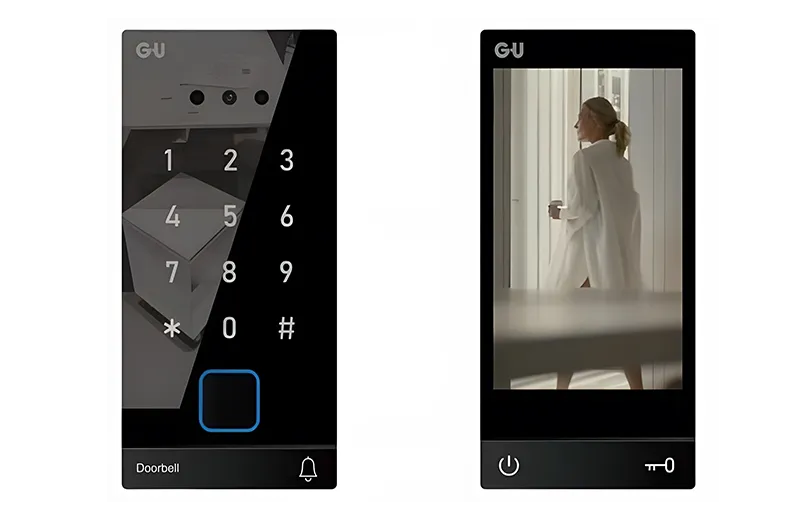

• Card Swipe Recognition
• PIN Code/Care Swipe
• QR Code Recognition

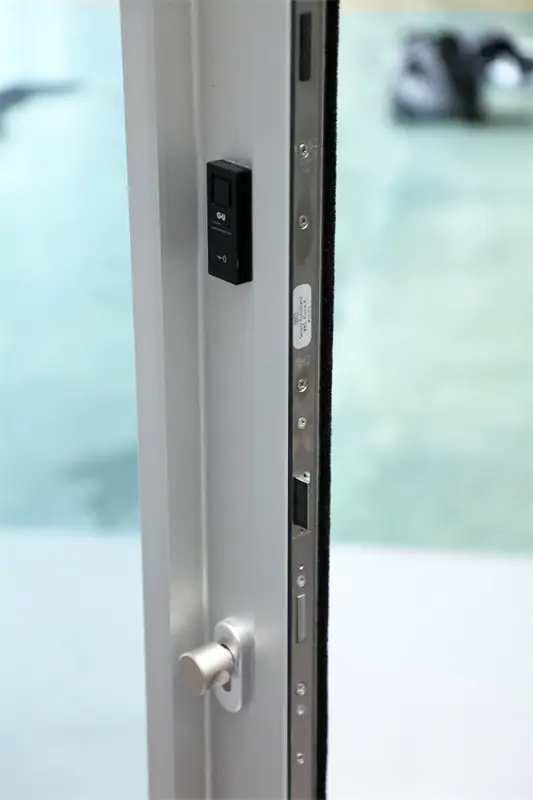

Redefine entry with clean, handle-free elegance. Our Pivot Door integrates a seamless pull grip directly into the aluminum profile—eliminating traditional handles for a minimalist façade. Equipped with a multi-point locking system, it ensures robust security while maintaining smooth, effortless operation: simply push or pull to swing open on its dramatic off-center axis.
For ultimate convenience, an optional smart electronic lock enables keyless access from outside via facial recognition, fingerprint, PIN code, or IC card—merging cutting-edge technology with architectural sophistication.
