TERRAPEX Sliding Solution

TE 160 SLIDING Series

The TE 160 SLIDING Series offers a complete range of profiles designed for all styles of window and door frames, delivering the robust performance of a lift-and-slide system with the unmatched elegance of wood.

1. Air permeability : Class 4
2. Water tightness : Class E1500
3. Wind resistance : Class C4
4. Thermal insulation : 1.57 W/m2K

Versatile Configuration and Design:

• Full Range of Options: Solutions include single-track and two-track versions for windows and French doors, with options for a concealed sash (leaf) and a lowered sill.
• Seamless Integration: This system can be combined with our standard casement window series for unified architectural design.

Performance Meets Aesthetic Warmth:

• Equivalent Performance: It offers the same high performance levels as our AE 106 Sliding series, ensuring superior sealing and insulation.
• Wood Interior Advantage: The defining benefit is the warm effect inside provided by the wood, which completely covers the aluminum. This ensures durability and protection from the elements on the exterior

while providing a luxurious, natural interior finish.e and refined aesthetic perfection are non-negotiable requirements.

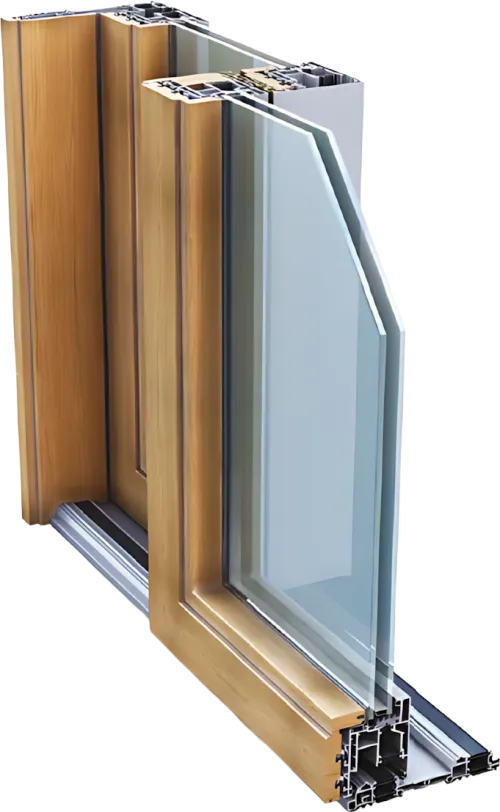

TE 214 LIFT & SLIDE Series

The TE 214 LIFT & SLIDE Series is a thermal break system for lifting and sliding doors, expertly designed to accommodate large sizes and substantial weight.

1. Air permeability : Class 4
2. Water tightness : Class E1500
3. Wind resistance : Class C4
4. Thermal insulation : 1.40 W/m2K

Elite Performance and Positioning:

• Superior Standards: This system delivers higher performance grades, sealing grades, and acoustic insulation effects than standard systems.
• Premium Market Segment: Positioned as a high-end product in the market, it is designed for prestigious projects where quality and performance cannot be compromised.

Ideal Application:

The TE 214 LIFT & SLIDE Series is the definitive choice for grand architectural visions, providing effortless operation and market-leading efficiency for massive, panoramic openings.
